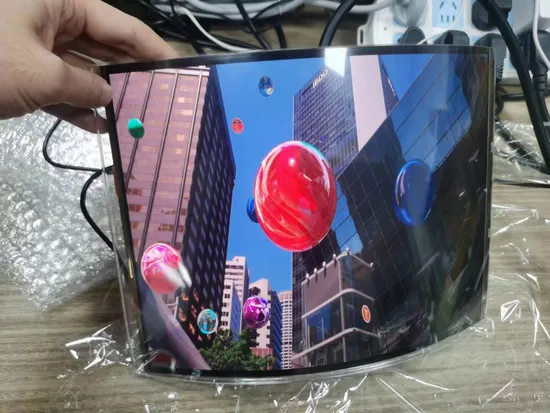

Transparent Icd Display

Basic Info.

Model NO.	12
Display Technology	TFT
DOT-Matrix Graphic LCD Module Type	Row/Column-Driven
LCD Drive Mode	Multiplex Drive LCD Module
Customized	Customized
Weight	200g
Made	2023
Color	White
Transport Package	Carton
Specification	200x200x200CM
Trademark	jinchao
Origin	China
Production Capacity	10000

Product Description

OverviewEssential detailsType:TFT, TFT
Display Size:5inch
Supplier Type:lcm
Place of Origin:Guangdong, China
Brand Name:Kingtech
resolution:800x480
viewing direction:12 O'clock
Can be customized:OEM and ODM welcome
Storage Temperature:-30ºC~80ºC
Brightness:500nits
outline dimension:120.7(W)*75.8(H)*2.9(T)
AA:108(W)*64.80(H)
driver IC:ILI6122+ILI5960
Interface:24-bit Parallel RGB InterfaceSupply AbilitySupply Ability
8000000 Piece/Pieces per MonthPackaging & deliveryPackaging Details
Carton
Port
shenzhen / hongkong
Picture Example:
Lead time:


Quantity(pieces)	1 - 10	11 - 1000	1001 - 3000	>3000
Lead time (days)	7	21	23	To be negotiated

For 10.1 inch, we have different models for customers choice. Such as 1280*800, 1024*600,800*1280, high temperature and brightness, normal temperature and brightness. MIPI, LVDS, RGB interface; USB and I2C capacitive touch, HDMI board For 10.1 inch, we have different models for customers choice. Such as 1280*800, 1024*600,800*1280, high temperature and brightness, normal temperature and brightness.Product Description

Module Display Main Parameters
Item	kingtech 10.1 inch ips1280x800 display
Model No.	PV10109LZR40G
Resolution	1280 x 800
Outline Dimension	229.80(W) x 149.00(H) x 5.95(T)
Active Area(mm)	216.96(W) x 135.60(H)
Interface	8-BIT LVDS Interface
Viewing Angle	All
LED life	50000h
Display Mode	Transmissive / Normally Black
Operating Temperature	-30ºC to +80ºC
Storage Temperature	-30ºC to +80ºC
Brightness	1000nits
Touch screen	I2C / USB capacitive touch screen
Board	HDMI board

Transparent Icd Display

Product Description

Item	500nit/1000 nit 5 inch tft lcd display
Model No	PV0502LZR40D
Resolution	800*480
Outline Dimension	120.775.82.9
Active Area(mm)	108*64.80
Interface	24-bit Parallel RGB
Viewing Angle	12 o'clock
Driving IC	ILI6122+ILI5960
Display Mode	Transmission / Normally White
Operating Temperature	-20ºC~70ºC
Storage Temperature	-30ºC~80ºC
Brightness	500nits / 1000nits
Touch screen	Resistive / capacitive touch screen
Board	HDMI board
